IN STOCK

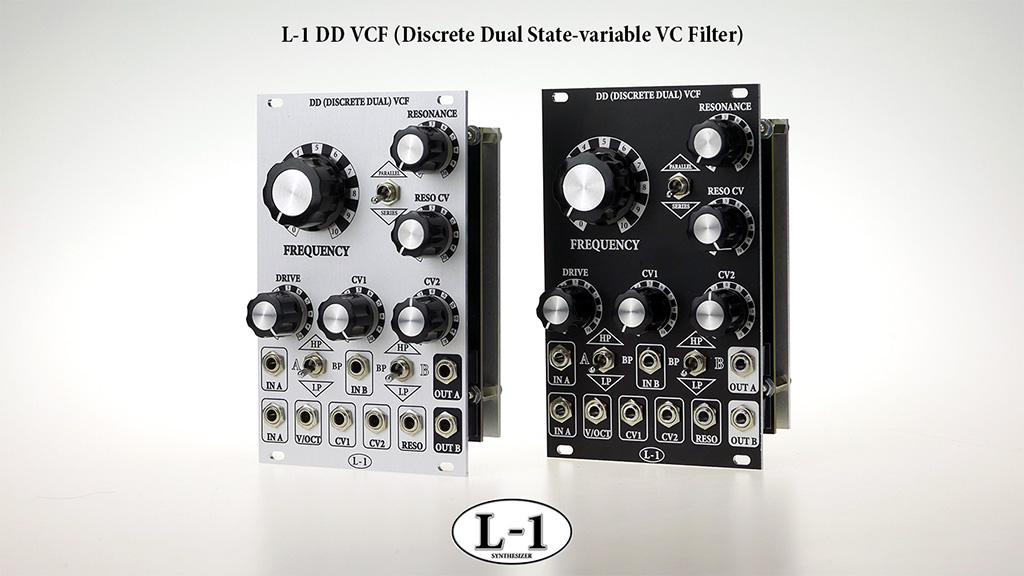

Discrete multimode voltage controlled filter. 16HP.







• Discrete multimode voltage controlled filter.
• 4 of Discrete Blacksea gain cells in the core.

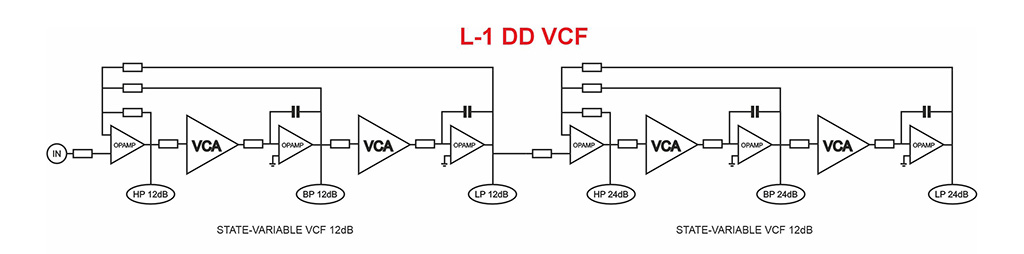

• The filter contains of two halves - A and B. Each half provides 12dB filtration.
• Filters A and B can be connected in series or parallel, selectable by switch.
• LP, BP, HP modes select independently for filter A and B by switches.
• Parallel mode provides two independend 12dB/oct filters with common control over frequency and resonance.
• Series mode provides single 24dB/oct filter with control over frequency and resonance.
• Full voltage control over cutoff frequency and resonance level.
• 1V/oct standard frequency control.
• Power consumption: V+ 58mA, V- 56mA.



Modulargrid: https://www.modulargrid.net/e/l-1-discrete-dual-vcf



Paypal: info(at)greenexpo.by



Assembled module $330 + $15 shipping.





Samples:

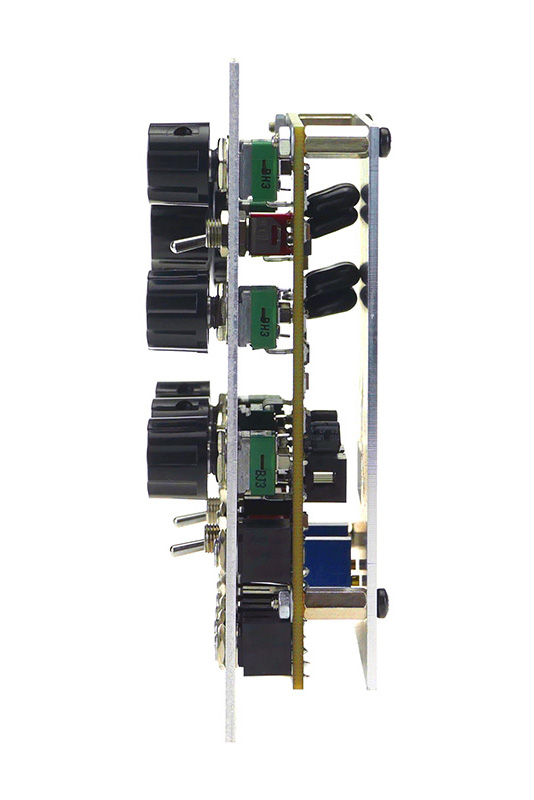

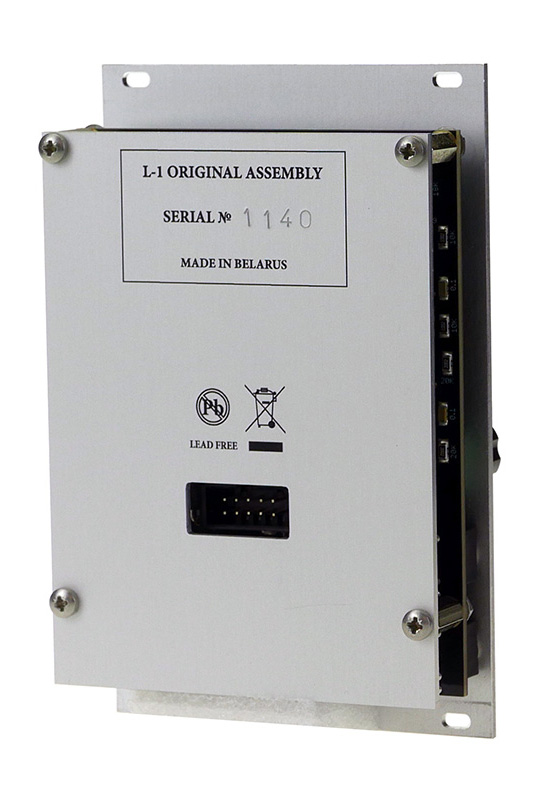

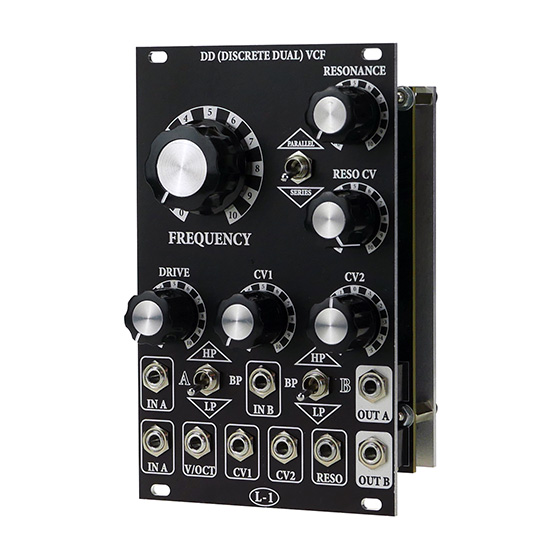

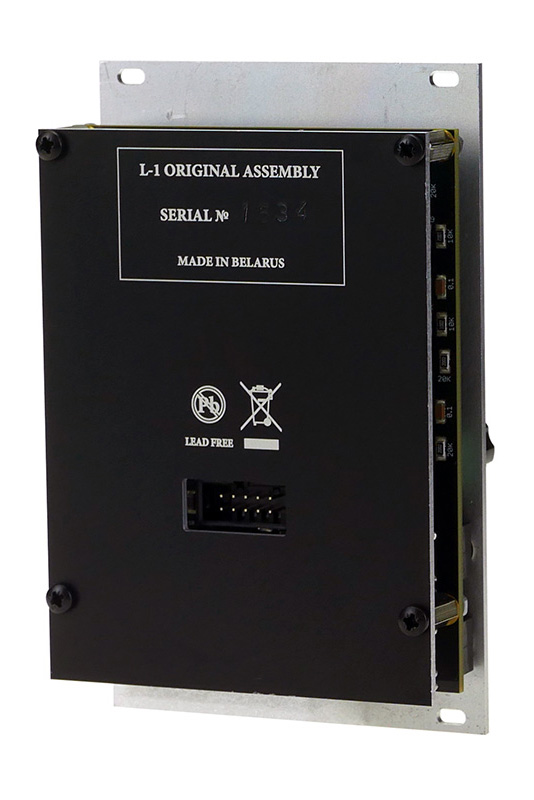

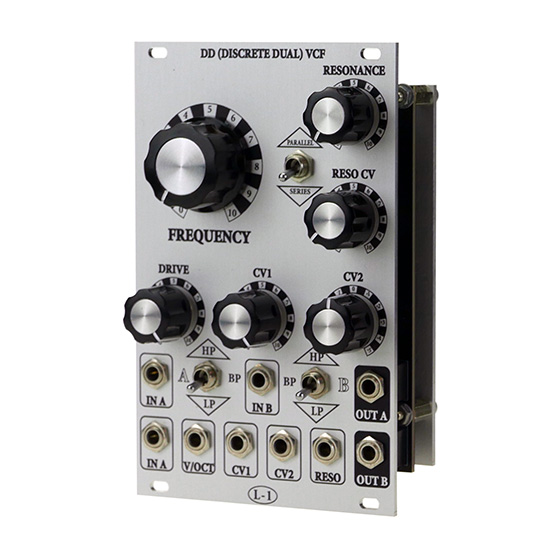

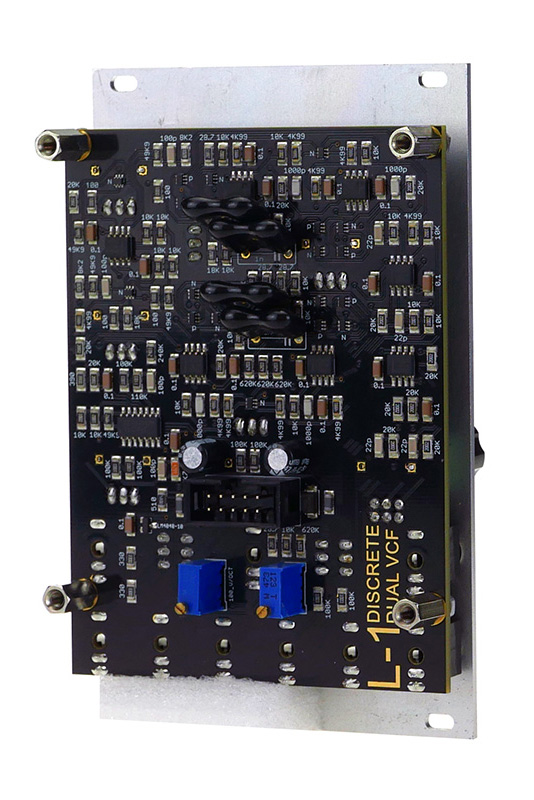

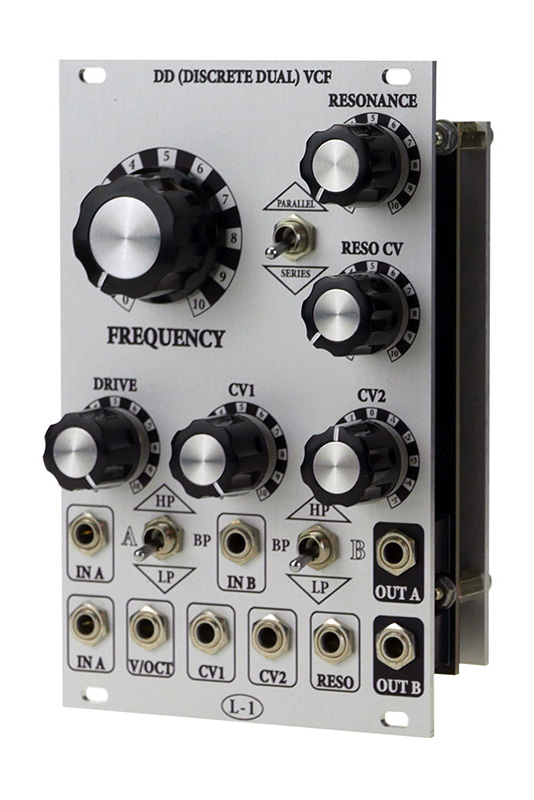

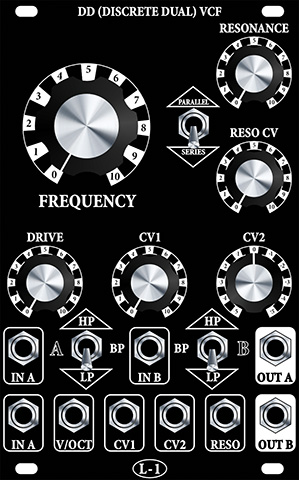

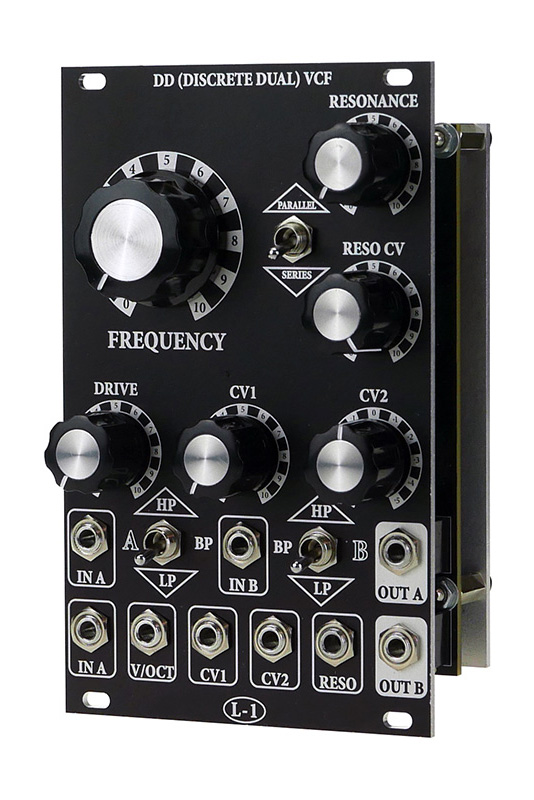

Photos:
