IN STOCK

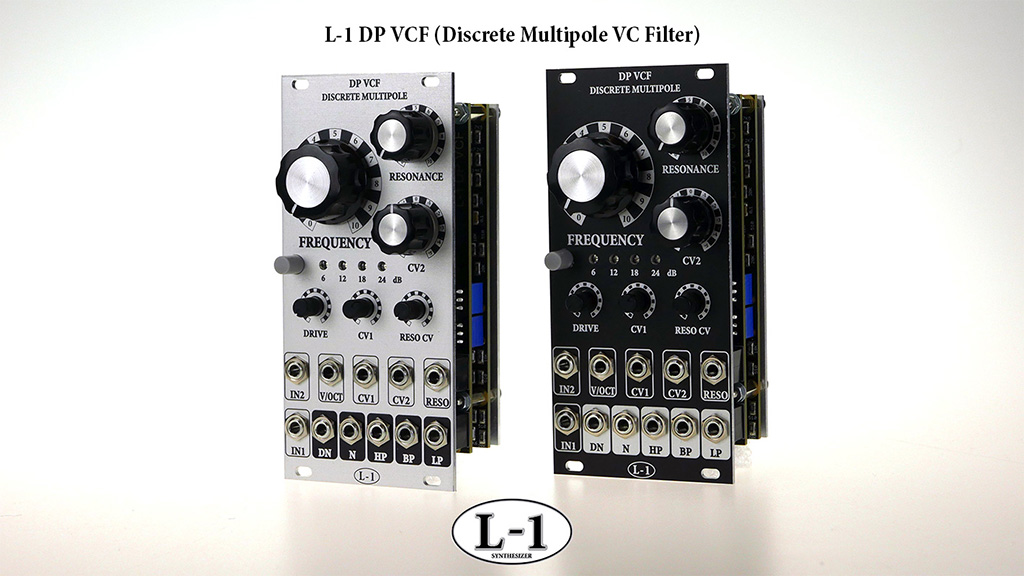

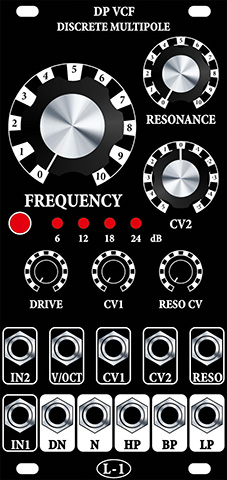

Discrete Multipole VC Filter. 12HP.

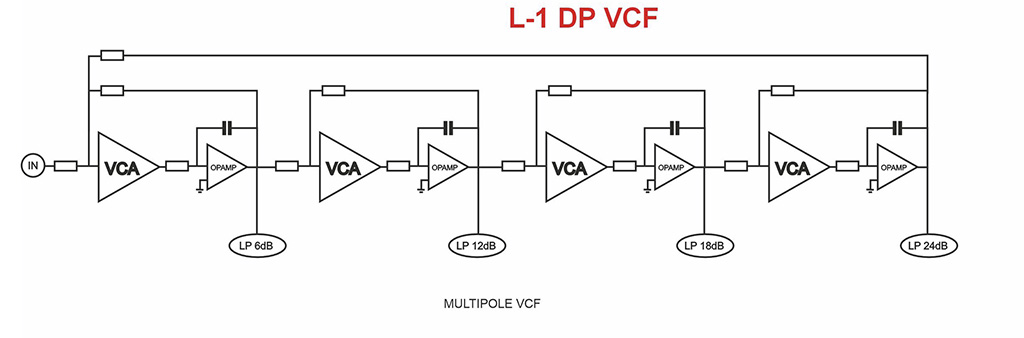

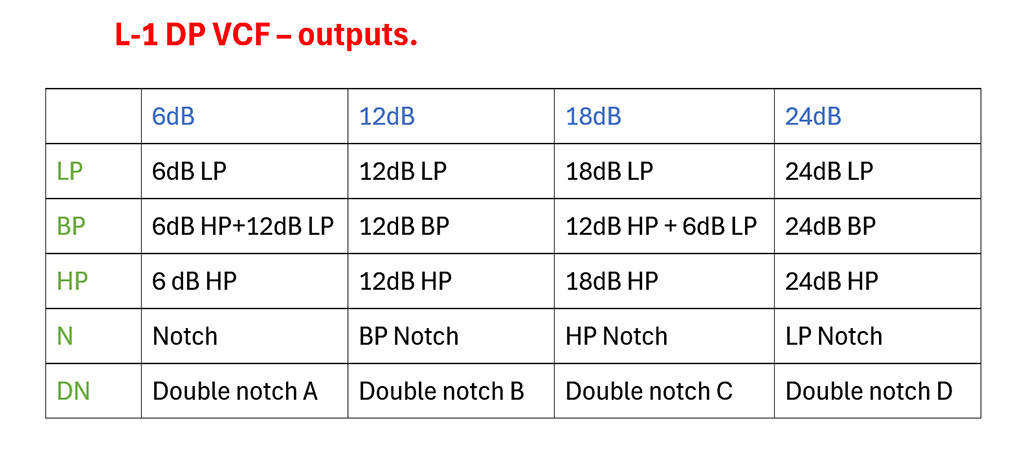

Pole-mixing filter contains four poles 6 dB/oct low-pass each. Mixing outputs of these poles gives 20 different filtering types combining 5 outputs with 6/12/18/24 dB switch.



Voltage control over Frequency and Resonance.

As other L-1 discrete filters, the circuit is based on original Discrete Blacksea gain cells and best silver-mica capacitors.











• Discrete pole-mixing voltage controlled filter.
• 4 of Discrete Blacksea gain cells in the core.
• 4 of best quality silver-mica capacitors.
• 20 different filtering types.
• Full voltage control over cutoff frequency and resonance level.
• 1V/oct standard frequency control.
• Power consumption: V+ mA, V- mA.



Price $380 + $25 shipping.



Paypal: aleksei1laman@gmail.com







Samples:

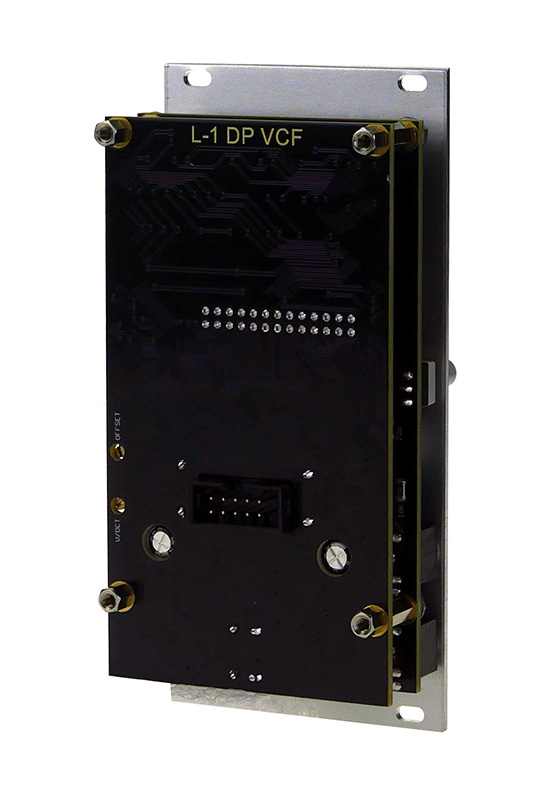

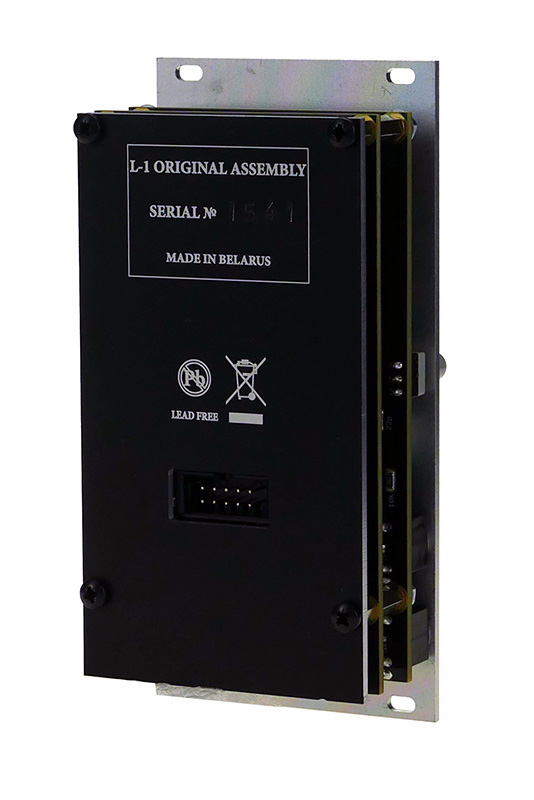

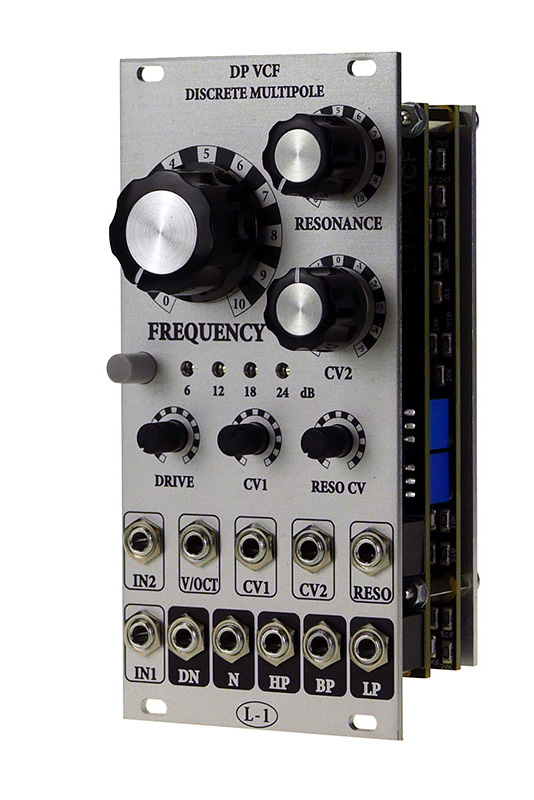

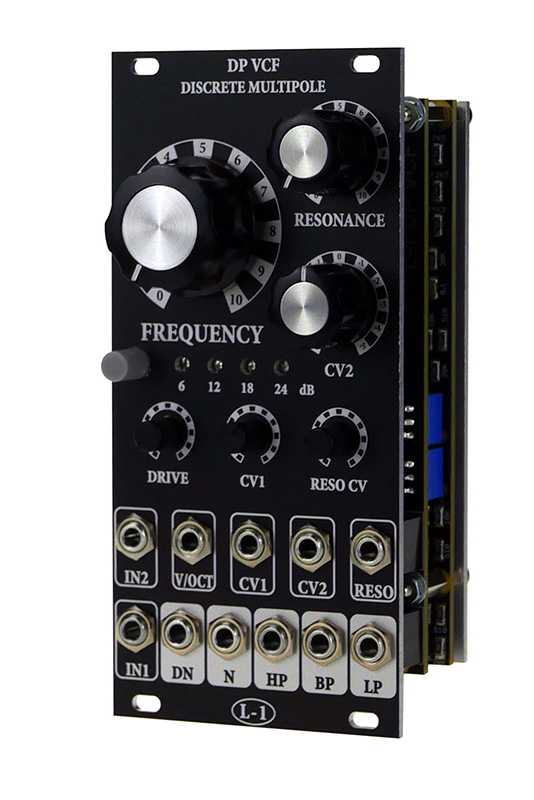

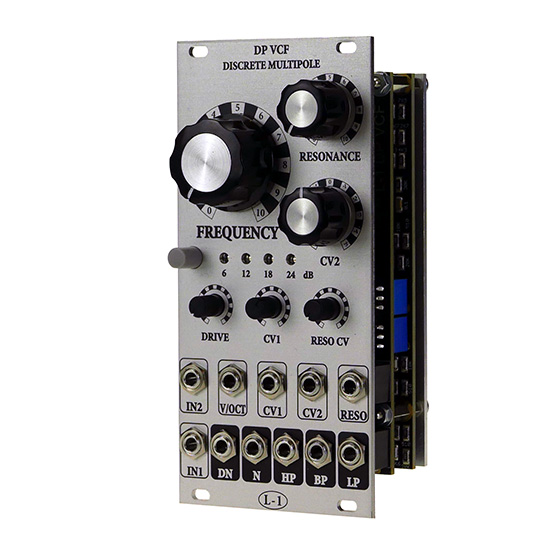

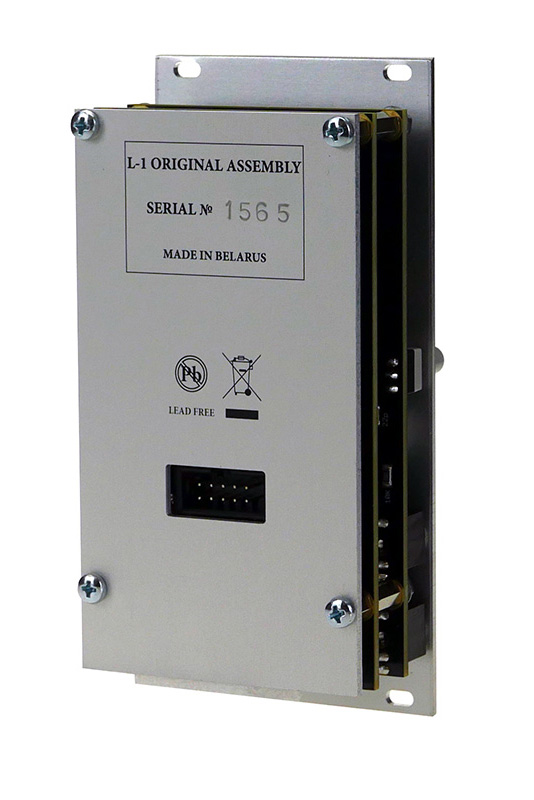

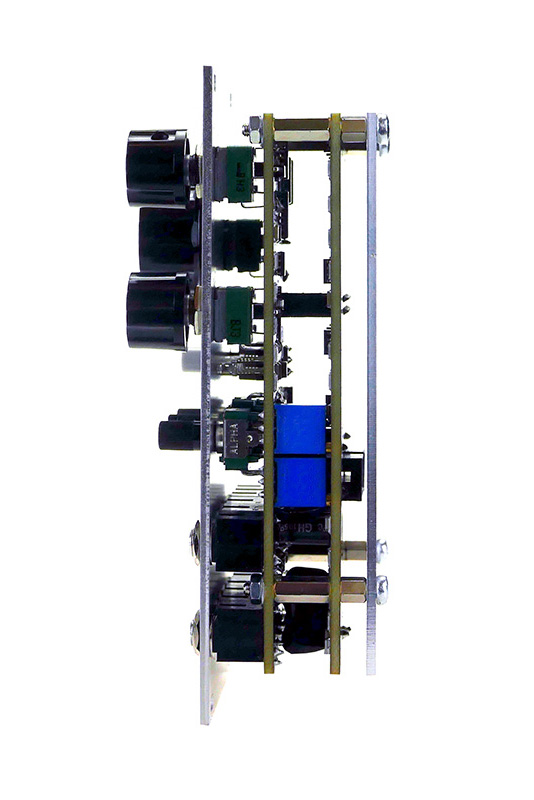

Photos:
