IN STOCK

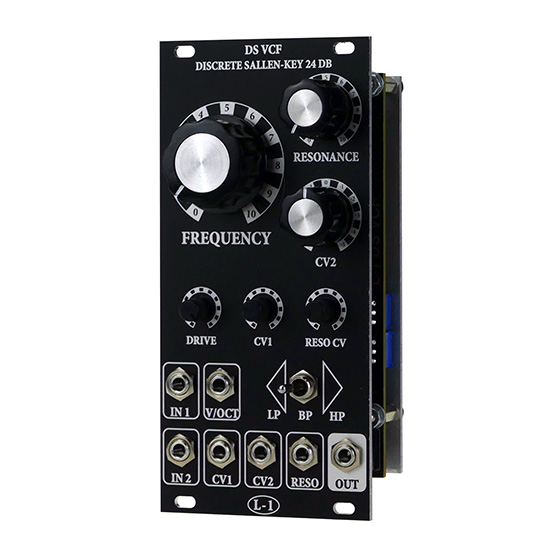

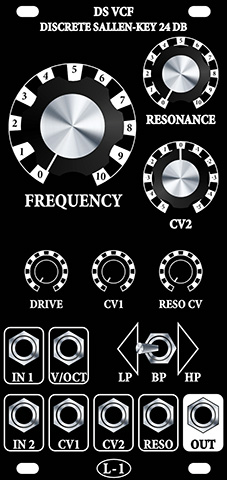

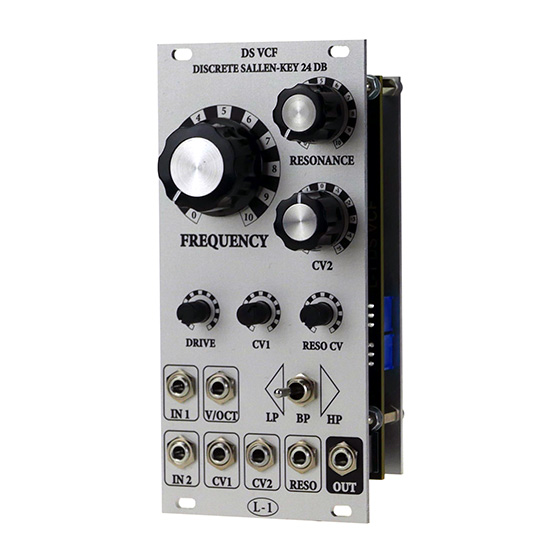

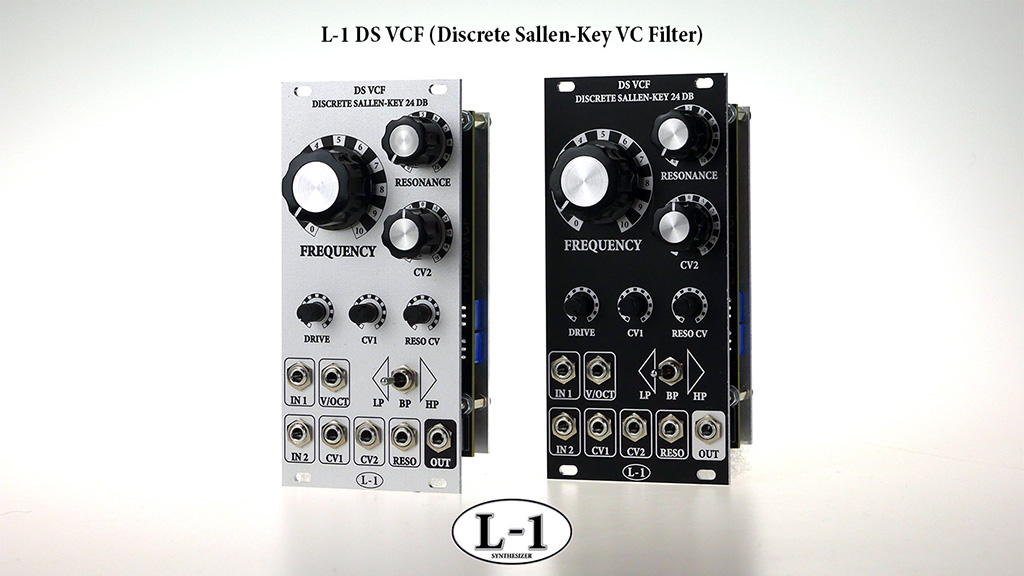

Discrete Sallen-Key Multimode 24 dB/oct VC Filter. 12HP.







Original circuit baed on Ssallen-Key topology was developed by L-1.
Sophisticated switching system switches between LP/BP/HP using 12 electronic switches.

Voltage control over Frequency and Resonance.

As other L-1 discrete filters, the circuit is based on original Discrete Blacksea gain cells and best silver-mica capacitors.









• Discrete Sallen-Key multimode voltage controlled filter.

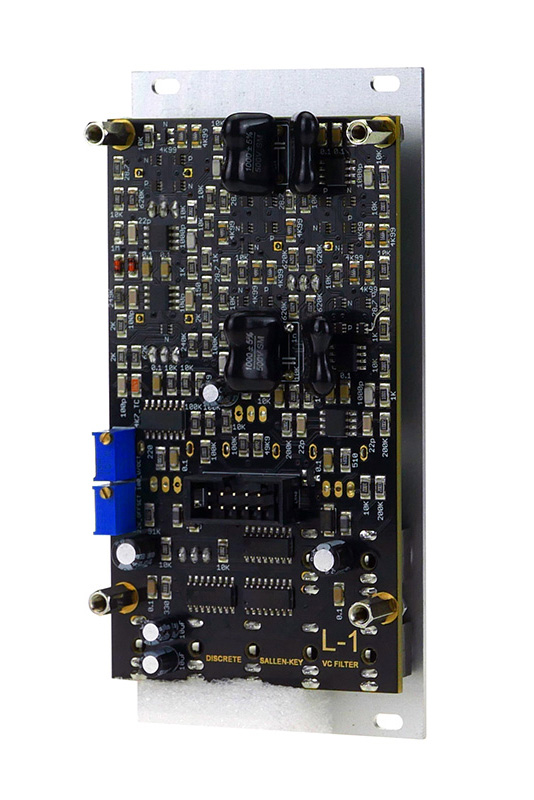

• 4 of Discrete Blacksea gain cells in the core.
• 4 of best quality silver-mica capacitors.
• LP, BP, HP outputs.

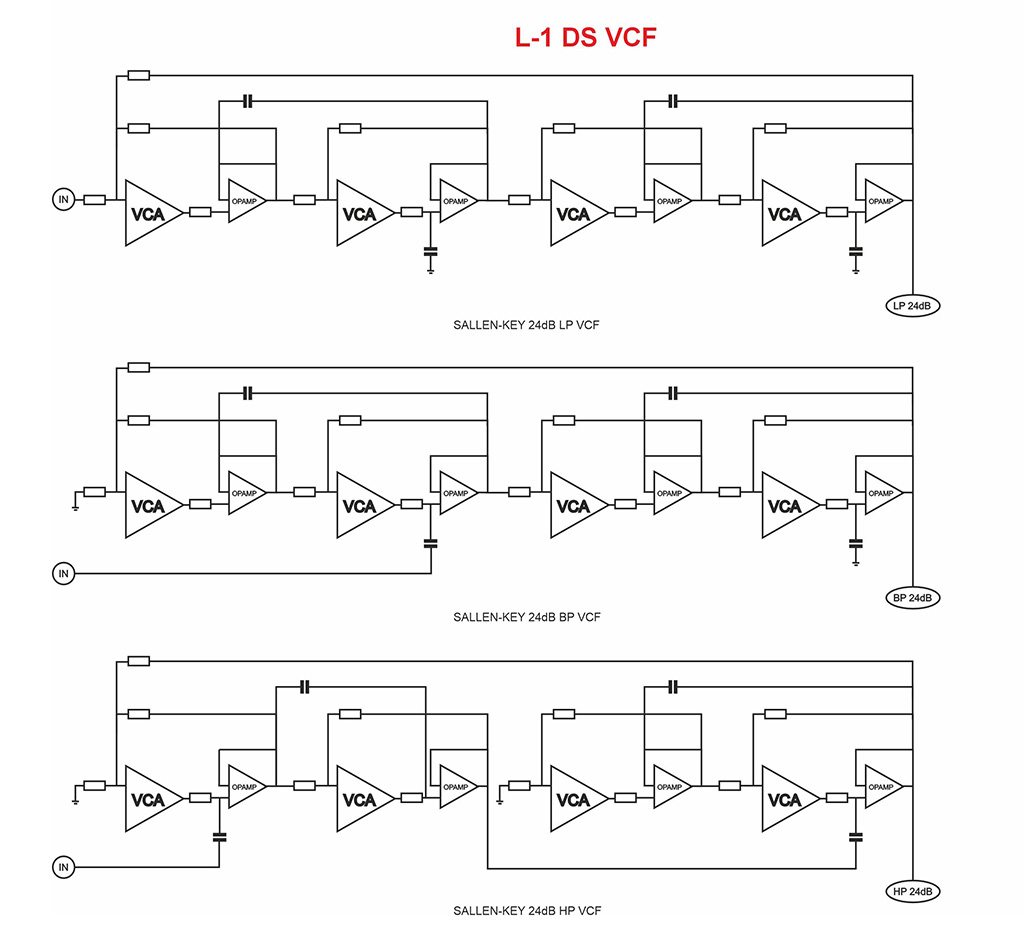

• Sallen-key filter provides 24dB/oct filtering with control over frequency and resonance.
• Full voltage control over cutoff frequency and resonance level.
• 1V/oct standard frequency control.
• Power consumption: V+ mA, V- mA.



Price $330 + $15 shipping.



Paypal: info(at)greenexpo.by







Samples:

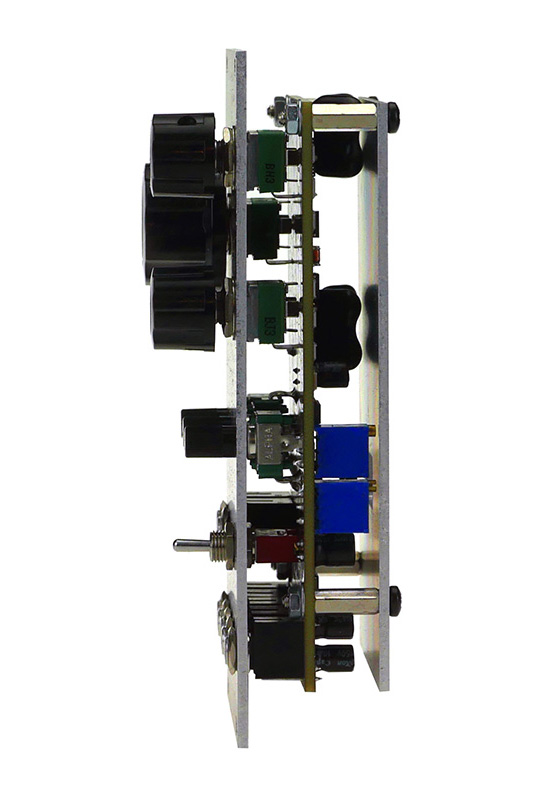

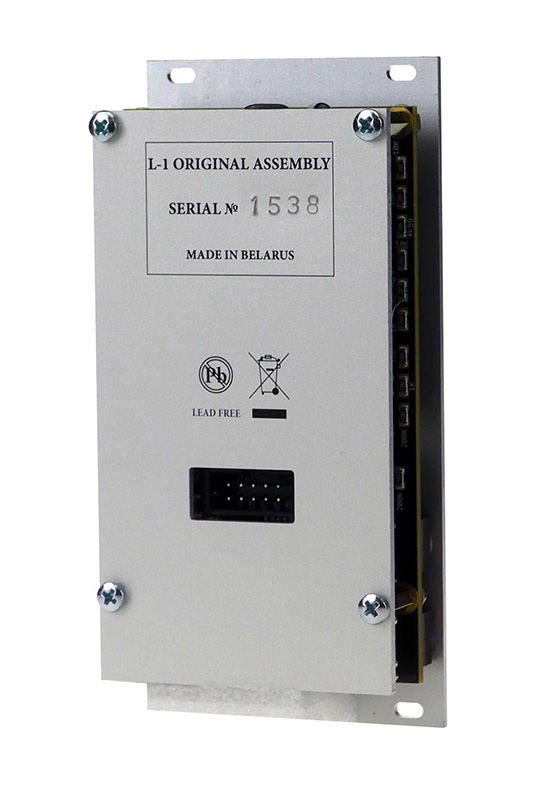

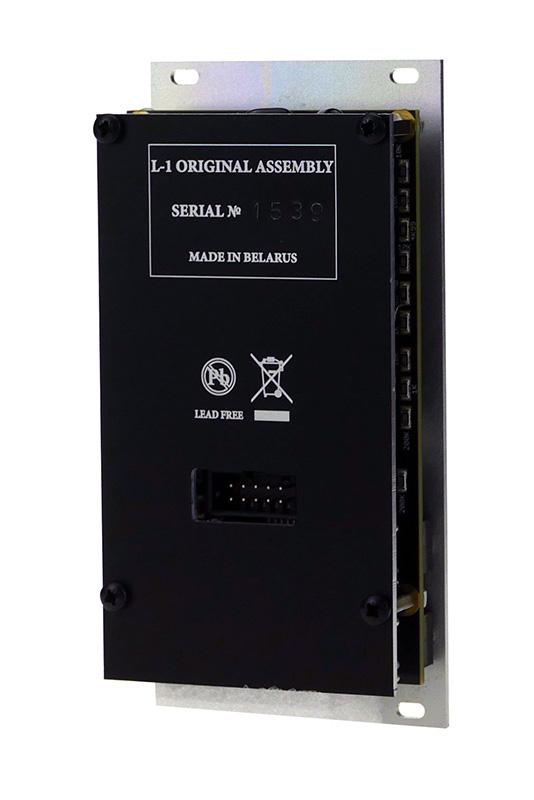

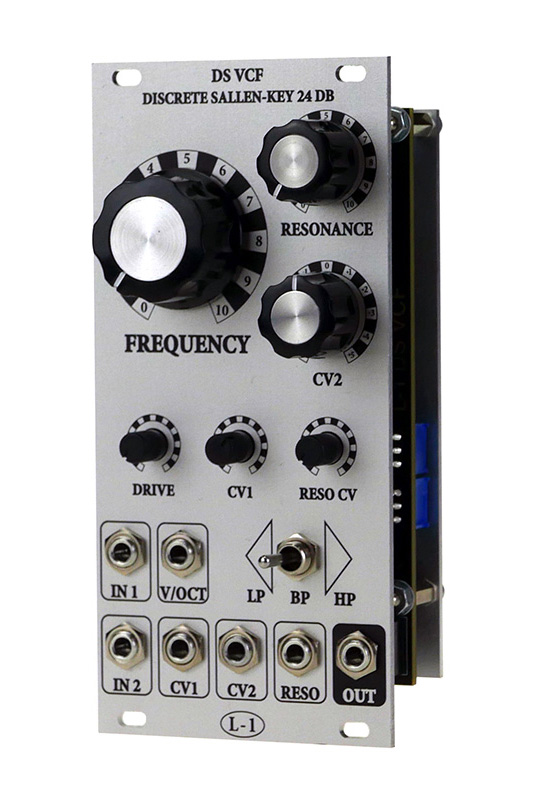

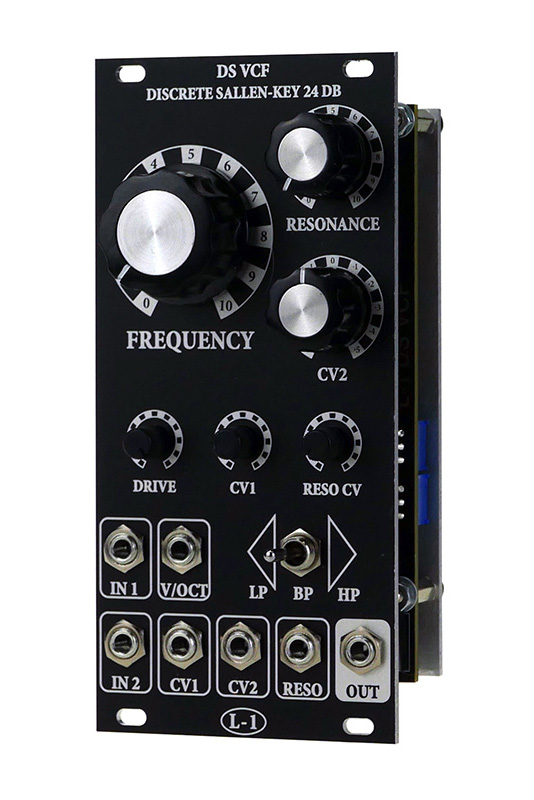

Photos:
