12V bipolar linear PSU and busboards for Eurorack synthesizers.



• 115/230V switchable.
• 1.5A per rail maximum output without ripples and noise.
• low voltage dropout under load. LDO regulators used.
• less heat because 13.2V 60VA transformer used.
• Fuse in the onlet.
• Thermofuses after the transformer on each rail.
• precise trimmable in range +-0.5V
• PCBs are gold platted, 2mm thickness, maximum possible thick foil layer 105mkm.
• two options: with 25mm height and 50mm height heatsinks.
• 5V regulator on busboards.

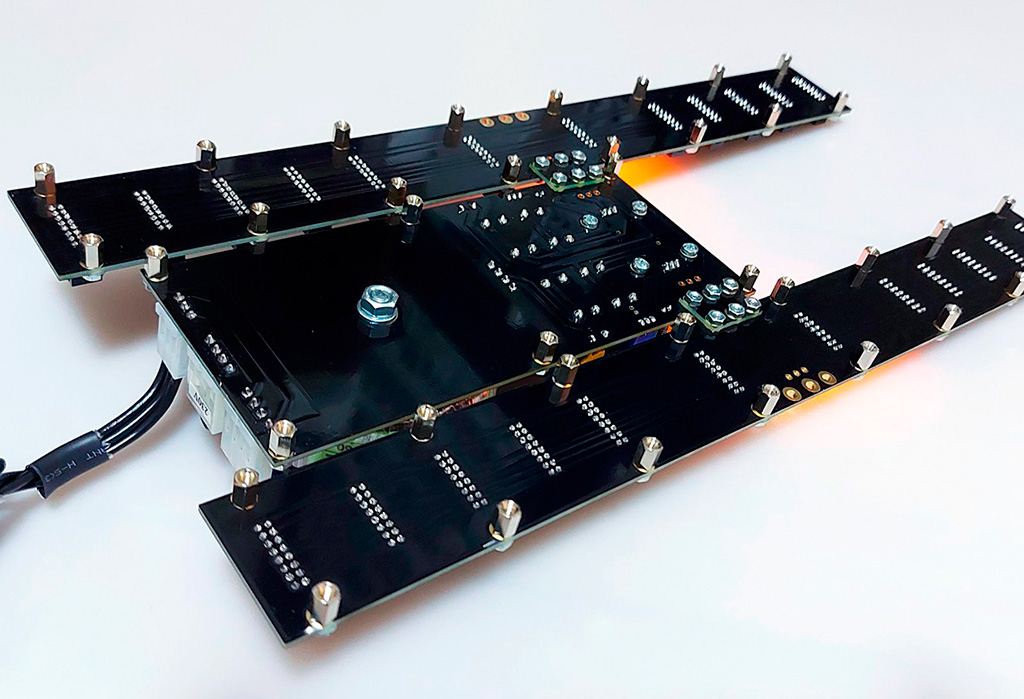

Power System can be pre-assembled in two variants - A or B. All parts needed to transform from A to B and back are included.



Variant A - PSU mounted together with busboards.



Variant B - PSU separated from busboards.











Prices:



Power System (PSU + 2 besboards) = $250 + $40 shipping



PSU without busboards = $180 + $35 shipping



Paypal: aleksei1laman@gmail.com



MUFFWIGGLER forum thread http://www.muffwiggler.com/forum/viewtopic.php?t=128163





Drill maps:



Drill map Variant A	Drill map Variant B
Drill map Variant A	Drill map Variant B
Drill map Variant A	Drill map Variant B





Two options - with 25mm heatsinks and with 50mm heatsinks.
