Analogue constant slope dual VC ADSR.

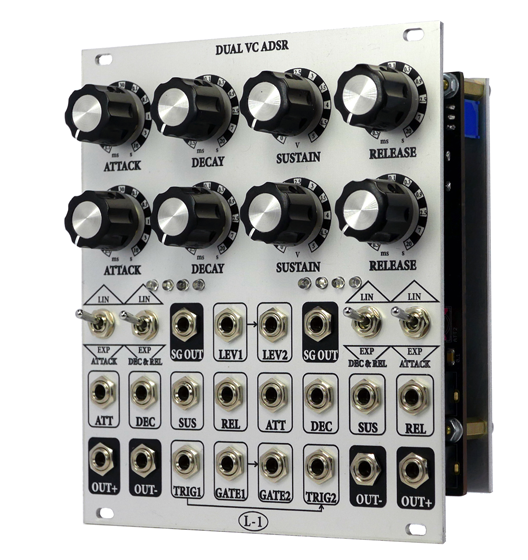

L-1 VC ADSR. Analogue constant slope dual VC ADSR. The circuit is based on Envylope schematic by Aaron Cram. The circuit is completely analog, no timers, logic chips etc., only transistors and opamps.



  • Two identical ADSR generators.
  • Attack range 0.1ms - 10s.
  • Decay and Release ranges 0.5ms - 20s.
  • Constant slope action.
  • 4 state leds show each step of the ADSR.
  • Linear or exponential slopes with separate switches for attack and decay/release.
  • Voltage control on each stage and output amplitude.
  • Sustain gate output produces gates during sustain time.
  • Trigger input resets the envelope.





Power consumption: V+ 77mA, V- 77mA.





PCB - 2mm thickness, gold platted, black mask. $35

Two panels - 22HP front & back. Anodized alu, black print. $40

SMD parts + soldering. $15

4 tempco resistors $6

Shipping per set: $5 - only boards, $8 - boards+panels.



TOTAL for complete set with shipping: $104



Skrill: info(at)greenexpo.by

Paypal: info(at)greenexpo.by



Assembled module $380 + $15 shipping.



MUFFWIGGLER forum thread http://www.muffwiggler.com/forum/viewtopic.php?t=94991







L-1 Dual VC ADSR in action:









Documents:



Partslist.



Trimming.



PCB top.



PCB bottom.



Front panel.



Back panel.
