XLR Balanced Stereo Output ttt






IN STOCK



XLR Balanced Stereo Output THAT 1646 based.







  • Based on high quality THAT1646 Balanced Line Driver.
  • Input buffer 20K impedance.
  • Channels are fully separated.
  • -10dB switch on the PCB.
  • Ground lift switch on the PCB.
  • Protection against phantom voltage.
  • Protection against reverse voltage polarity.



  • 19 mA +12V
  • 19 mA -12V
  • 0 mA 5V
  • 36 mm deep
  • 6HP



PCB - 2mm thickness, gold platted, black mask. $20

Two panels - 12HP front & back. Anodized alu, black print. $20

SMD parts + soldering. $5

standoffs, connectors.

Shipping per set: $5 - only boards, $8 - boards+panels.



TOTAL for complete set with shipping: $53



Paypal: info(at)greenexpo.by



Assembled module $165 + $10 shipping.



MUFFWIGGLER forum thread https://www.muffwiggler.com/forum/viewtopic.php?p=2899737



Modulargrid: https://www.modulargrid.net/e/l-1-xlr-balanced-stereo-output



Documents:



Partslist.





Kit:

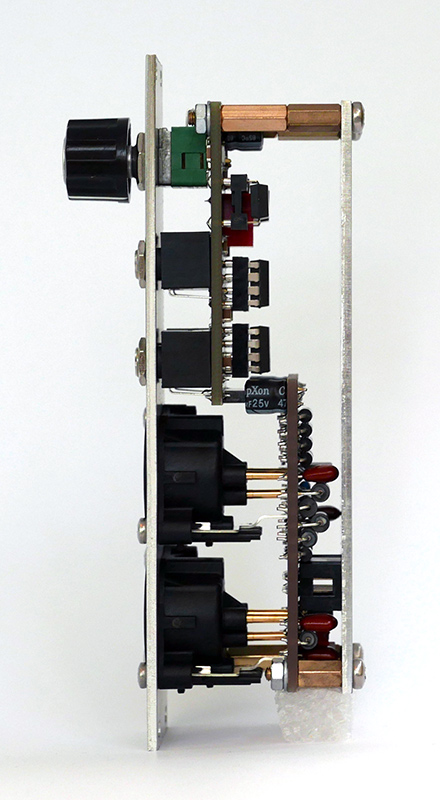

Photos:
